THINGFOX tracking software

Thingfox is an ideal solution for transport, forwarding and logistics companies who value innovative solutions, cargo safety and convenience in use. The device does not require any connections and is small, so we can place it directly in the transported cargo – it gives us greater control efficiency. We can not only control the geodetic position of the semi-trailer, but also the position of the valuable cargo.

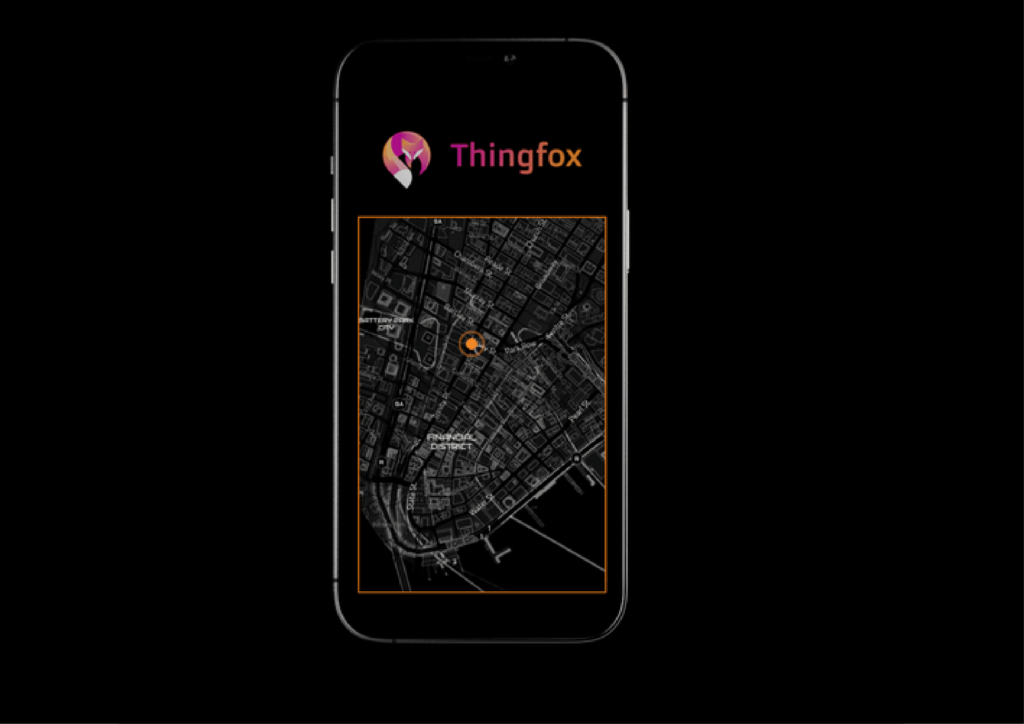

Easy tracker registration with Thingfox App and integrated NFC chip. Thanks to the application, we can check the status of our device, configure it or create a new “mission”. The device is charged using a type C charger (the most popular on the market).

• Connectivity Module – The ublox Sara 412 is a Multi-band NB-IoT / LTE-M EGPRS module with a 2G fallback option supporting nearly global connectivity plus jamming detection.

• Bluetooth Low Energy – The ublox Nina-B112 module is a small stand-alone Bluetooth® low energy module featuring Bluetooth 5, a powerful Arm® Cortex®-M4 with FPU, GATT client and server, beacons and NFC.

• Rechargeable Battery – A powerful Li-Polymer Battery adds an autonomous and stable power supply to the device as a long lasting energy source. The battery provides 3.7V and has 6000mAh capacity. The tracker can either run on battery or on static power supply.

• GNSS Location module – The uBlox MAX-M8 module utilizes concurrent reception of up to three GNSS systems for most reliable positioning including minimal acquisition times while maintaining low system power. It supports message integrity protection, geofencing, and spoofing detection.

• Extended sensors – A versatile set of robust and sensitive sensors including temperature, light, shock, magnetic and orientation are built-in. React on any possible event of any sensor..

• USB-C and I2C-Data ports – Fully IP68-protected USB ports for charging the device, keeping it on static power supply as well as one external I2C outbound port to connect external hardware and supply it with 5V energy.
