SBS BDL-H Trailer Lock

standard protection for most types of semi-trailers, roller shutter containers and refrigerated semitrailer. Recommended for SCHMITZ semi-trailers

Use:

standard protection for most types of semi-trailers, roller shutter containers and cold stores

Weight:

7,30 kg

Closing time:

approx. 2 hours (permanently installed), fastening the lock: 20 seconds

Dimensions:

230mm x 280mm x 90mm

Material used:

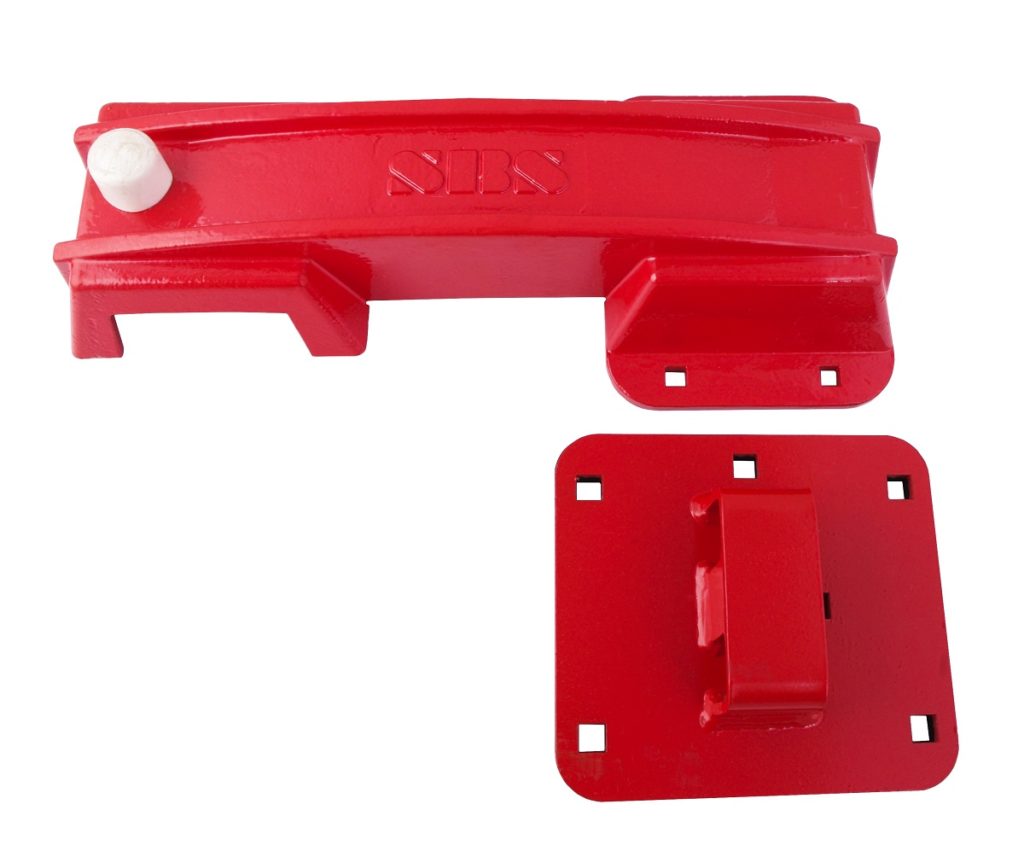

Upper casting: electro-galvanized steel, powder coated; Bottom part-closure: stainless steel (AISI-304)

Padlock/cylinder:

SBS PL7000 or ABLOY PL358 padlock / a possible Master-Key system (one key-many solutions) or the Key Alike system (the same key code)

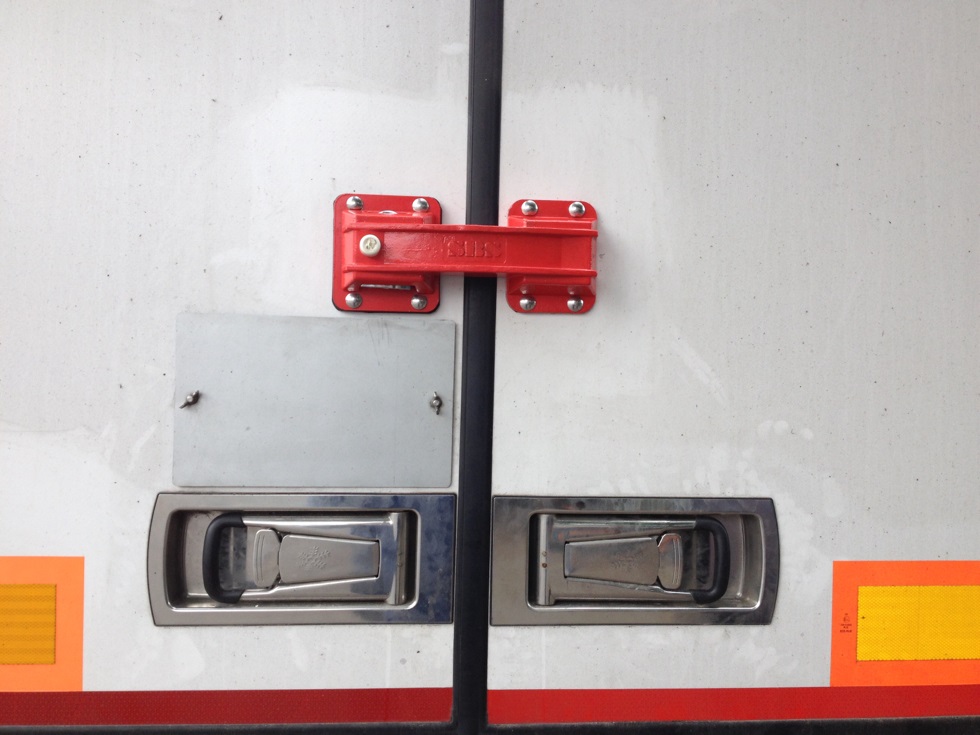

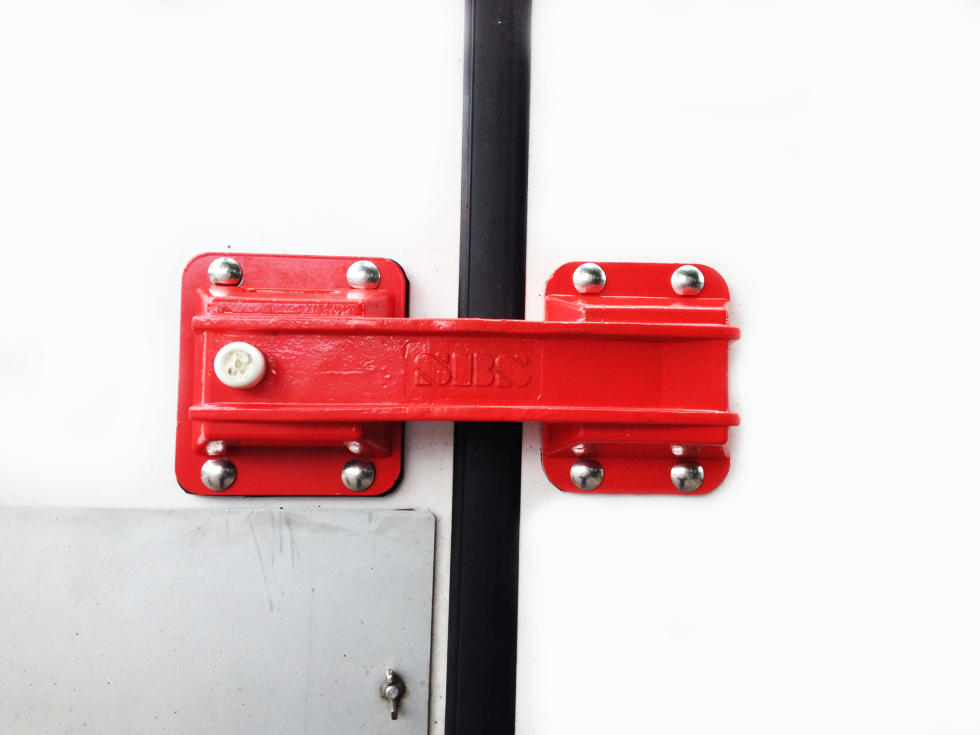

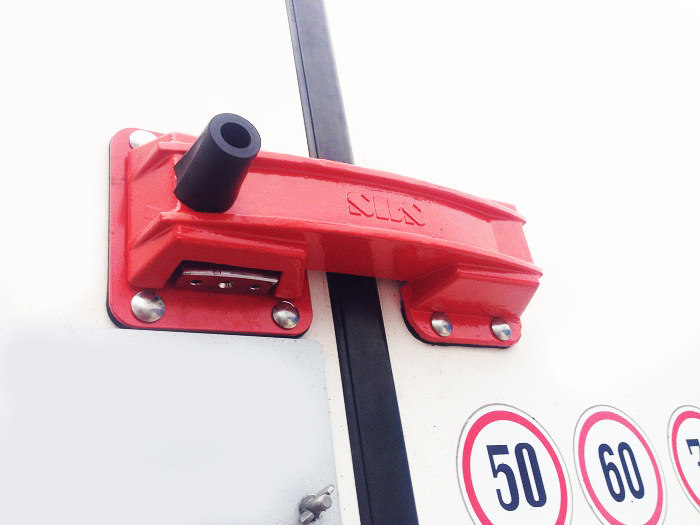

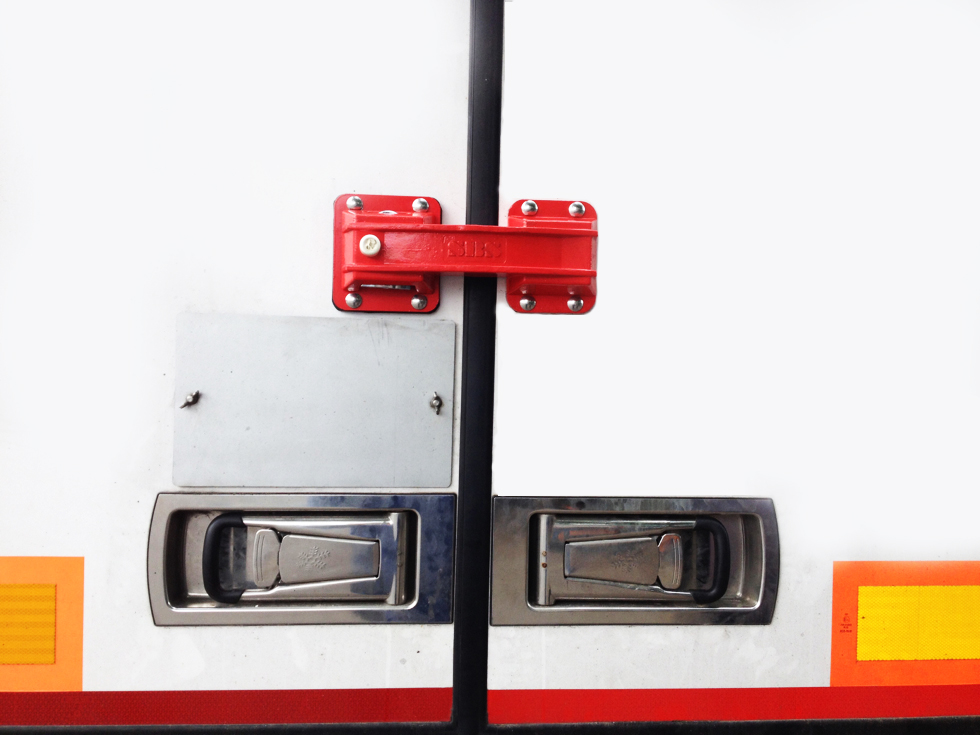

SBS BDL-H with SBS PL7000/ABLOY PL358 padlock – a multi-purpose anti-burglary device highly recommended for semi-trailer bar-less doors fitted with lower closing/opening levers.

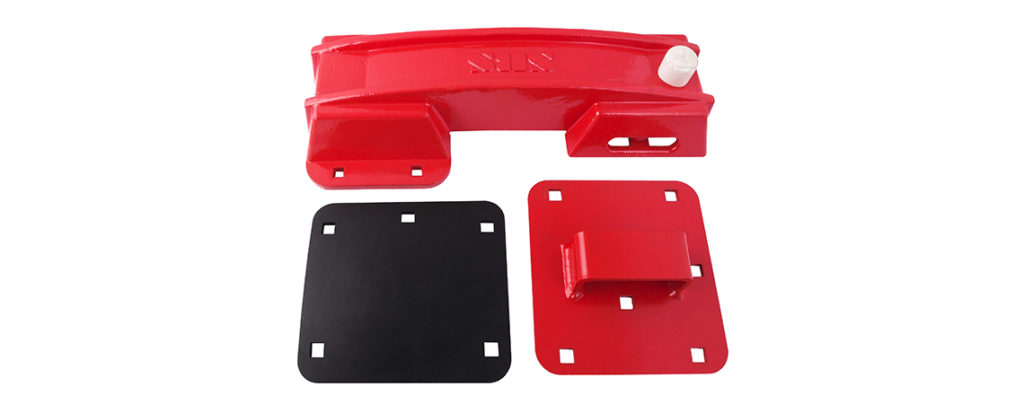

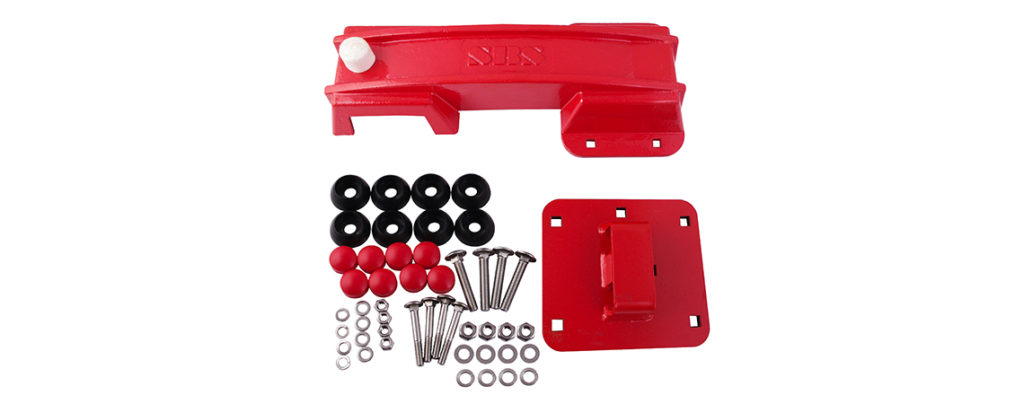

SBS BDL-H locking mechanism is a standard protection for carriers of valuable goods. The BDL-H is perfect for containers, isothermal and certain refrigerator semi-trailers. It is suitable for all types of semi-trailers and trailers with swing door without external locking bars. There is a special assembly kit for sets installed on refrigerator semi-trailers. The BDL-H is fitted with a high-quality padlock. The lock can be made in the Master Key (one key for all SBS systems) or the Key Alike (one key code for all locks) system.

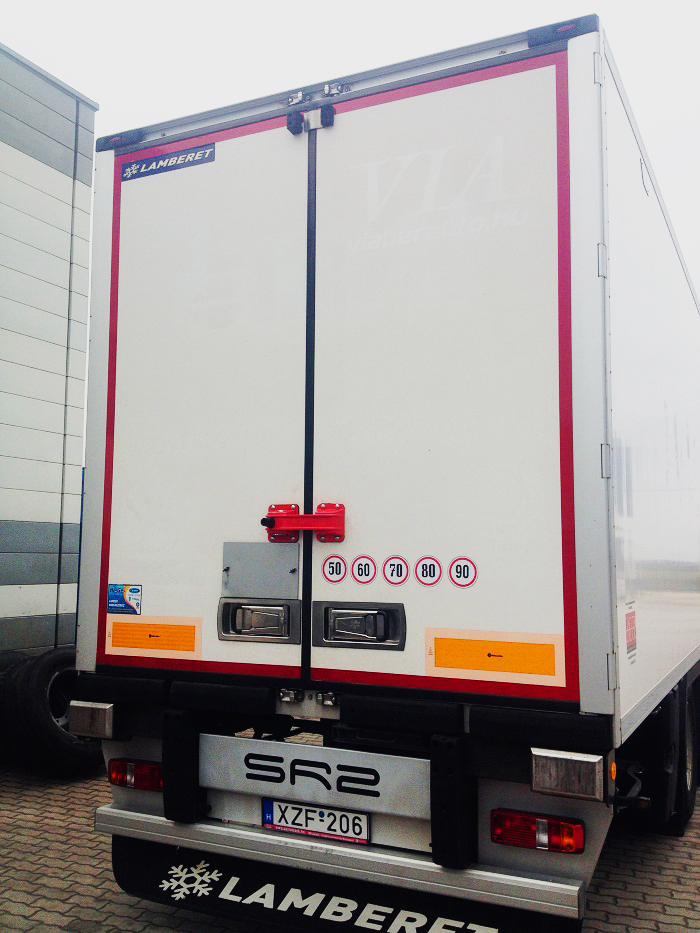

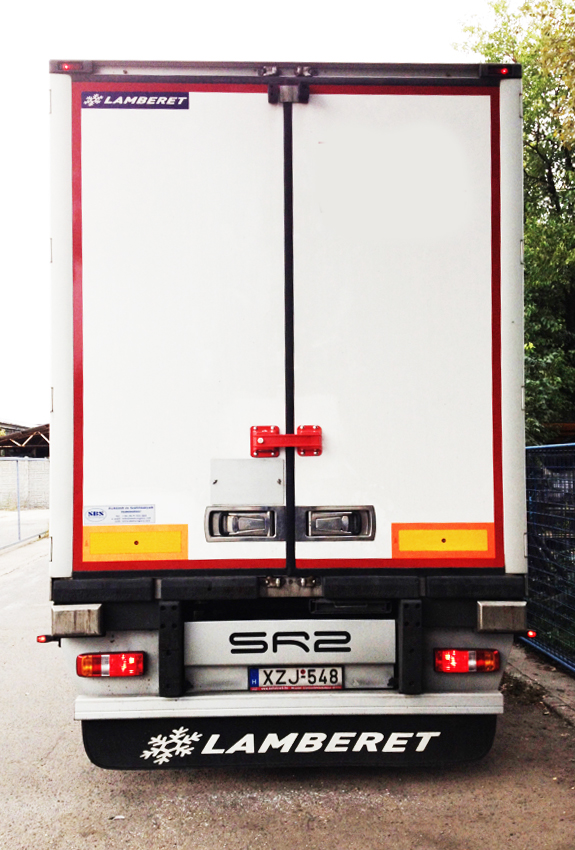

Suitable for: all types of semi-trailers, sea and forwarding containers, refrigerator semi-trailers with no locking bars installed on the outside of the semi-trailer.

SBS BDL-H lock has an SCM/VBV certificate and is recommended by TAPA TSR level 2 and 3.

Blokada BDL Schmitz jest wyposażona w jedną z 3 kłódek do wyboru przez klienta:

Charakterystyka kłódki SBS PL7000-kliknij zdjęcie

SBS PL7000 padlock – is one of few padlocks available on market with removable shackle. Unic blocking mechanism can’t be break trough across the use generaly available tools on the market.

Mechanism developed by SBS Holland with upside down cylinder and stainless steel housing. Those attribute affect on maximum security level.

The keys are equipped in key card, thanks to which we make a backup copies.

SBS PL 7000 padlocs are resistant on corrosion and drilling.

CEN 5 / certificate SKG ***

Every single lock with PL7000 padlock can be create on individual key code or in MasterKey system ( one master-key – opening all locks in system) or KeyAlike system (one key code for all locks ).

Charakterystyka kłódki ABLOY PL358 – kliknij zdjęcie

ABLOY PL358 padlock – is one of the best padlock available on the market. Unic blocking mechanism can’t be break trough across the use generaly available tools on the market. Her uniqueness is also due to pulling out the shackles, which makes a product suitable to many SBS lock constructions.

The composition of the steel mixture in the ABLOY PL358 padlock shackle contains an element – boron, which extra hardens steel. Mechanism developed by SBS Holland with upside down cylinder and stainless steel housing . Those attribute affect on maximum security level.

The keys are manufactured with a high security profile, without the possibility of unauthorized duplication and equipped with a key code card.

ABLOY PL 358 padlock are resistant on corrosion and drilling.

CEN 5 / certificate SKG ***

Charakterystyka kłódki ABLOY SWP PLM358 – kliknij zdjęcie

ABLOY SWP PLM358 (Super Water Proof) padlock – very durable padlock with removable shackle – 5 acc. safety class to standards EN12320, additionaly sealed at the top and bottom against water, dust and sand. (SWP).

SWP – it’s a amazing solution where all the parts are tightly protected to provide an opportunity in work even in the most difficult conditions. SWP is perfect security even when it is constantly exposed to extremely high or low temperatures, stanowi doskonałe zabezpieczenie, nawet gdy narażony jest stale na ekstremalnie wysoką lub niską temperaturę, washing by salty water or the dust. SWP system meets the standards IP68. The protection consist in placing inside the padlock (form the top) o-ring made of high-quality EPDM rubber, which prevents water, dust and dirty from getting inside the padlock. At the bottom is installed specially sealed and profiled tap, screwed into the key hole. The cap is mounted on a spring to prevent it from being lost.

Every each locks can be made on individual key code or in MasterKey system ( one master key opening all the locks in system) or KeyAlike system ( one key code for all locks).

Key systems (optional):

Master Key System – the so-called general key system – a special key system made in such a way that with the use of one key you can open any number of locks specified by the Ordering Party. The Master Key system may consist of various types of cylinder (patent) inserts, padlocks or electronic locks in the case of RFiD cards. Master Key systems work well in all types of fleets of trucks because they eliminate a number of problems caused by an excessive number of keys in circulation (e.g. keychains, no control over duplicating keys by unauthorized persons, no possibility to quickly open the door in an emergency, etc. ). The access rights of individual keys in the system may be different. Master-Key is both simple systems characterized by a small number of doors and a simple access structure, as well as large systems containing many different groups of keys, subgroups and combinations. There are few practical limitations to the size and complexity of the system.

The master key system can be divided into 3 basic groups:

KEYED-ALIKE – unified cylinder system – all lock cylinders and padlocks as well as advanced electronic locks (RFiD or Ifob cards) are opened with the same key.

MASTER-KEY – master key system – the master key opens all locks in vans, containers or semi-trailers, while individual locks are opened only with individual keys.

GROUP MASTER-KEY – master key and group key system – designed for large transport fleets, etc. Depending on the organizational structure of the institution – there are several groups of keys in the system that are subject to the overriding Master key that supports the entire system.
