SBS TRAILER SUPPORT

a support that stabilizes the position of the vehicle during unloading and protects it against shifting or tilting under the influence of the weight of the load
Use:
a support that stabilizes the position of the vehicle during unloading and protects it against shifting or tilting under the influence of the weight of the load
Weight:
255 kg
Mountage:
20 second
Dimensions:
- Maximum height: 1.33 m

load capacity: 25 t
lifting capacity: 18.16 t
contact points - 61.0 cm x 16 cm
adjusting the length of the support 1.025 m - 1.54 m,
base: 45 cm x 45 cm x 45 cm
Material used:
carbon steel, hardened, galvanized, then powder coated yellow; elem. reflective

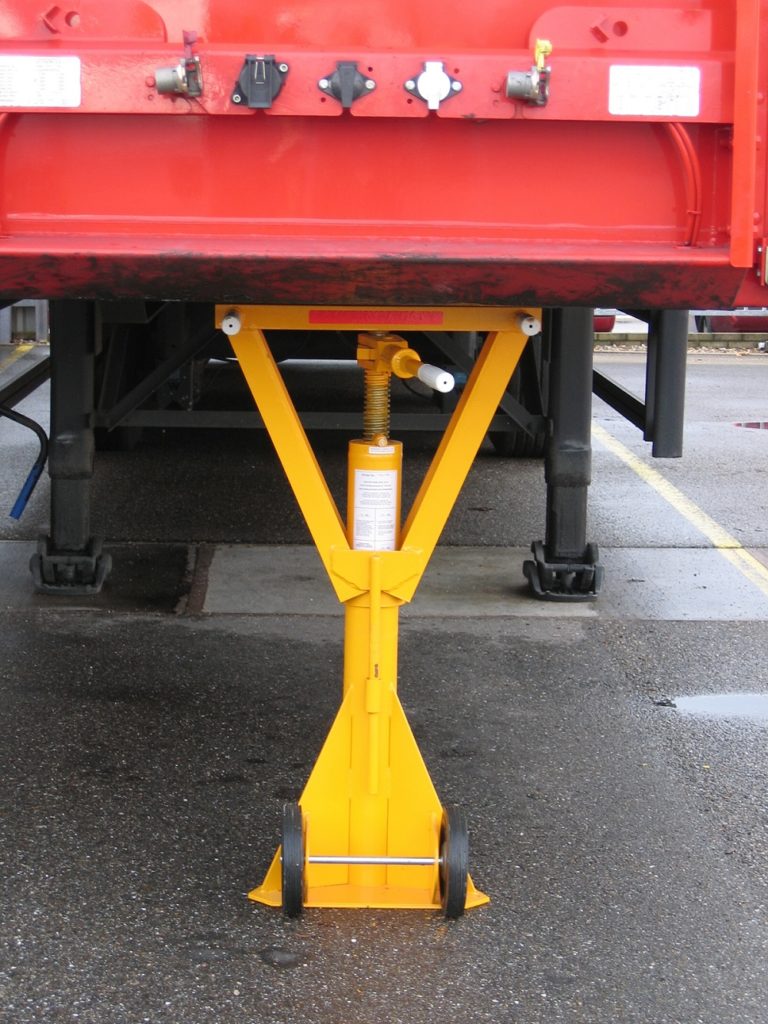

SBS TRAILER SUPPORT Stand – a support designed to stabilize the position of the vehicle during unloading and to protect it against moving or tipping under the impact of the load.

SBS TRAILER SUPPORT Stand prevents the trailer from tilting during loading/unloading operations with the use of forklifts. In addition, It stabilizes the vehicle’s position during reloading and protects it from moving or tipping under the impact of the load. It provides the safety of the crew carrying out the reloading operations. It eliminates the risk of damage to the vehicle and the goods and withstands loads of up to 25 tons and allows the user to adjust the height in the 1020 – 1540 mm range.

SBS TRAILER SUPPORT Stand is easy to use. It is fitted with a mechanical adjustment device that allows the user to adjust the support height in the range of 1020 – 1540 mm. It has two castors for easy movement. If necessary, the stand can be fitted with a PV-06FX or SBS ANDIS 1100 kingpin lock to further protect the trailer will be against the unauthorized coupling with a tractor unit.

Dane techniczne:
pneumatic tires dia. 20 cm,
– Regulated high: 10,4 cm

– Maximum height: 1.33 m

– Load capacity: 25 t

– Lifting capacity: 18.16 t

– semi-trailer support

– contact points – 61.0 cm x 16 cm

– adjusting the length of the support 1.025 m – 1.54 m,

– base: 45 cm x 45 cm x 45 cm
